Uv Light Pp-I System 100-240V/50-60Hz Uv Water Sterilizer, 3/4" Npt Complete system and Replacement Parts . also replaces ACM0888 Model Flow rate (l/min) Quartz Inlet/Outlet Bulb Ballast PP-I 22.6 Diameter 24.5mm / Lenght : 350mm 1" T515 UV-3-regular 220-240V PP-II 45.2 Diameter 24.5mm / Lenght : 680mm 1" T529 UV-6 PP-III 90.4 Diameter 24.5mm / Lenght : 910mm 1.5" T540 UV-6 The Complete Uv Light Sanitation System Is A Great Upgrade For Any Spa Owner! Our Uv Sanitation System Uses A 100% Contained Lamp That Uses A Physical Uv Light To Clean Waterborne Bacteria, Algae, Pathogens, And Virus. The Light Is Highly Concentrated Into Its Housing Element To Accommodate For High Flow Rate Cleaning. This Process Is 100% Physical And Involves No Chemicals Making It Safe For Everyone. Currently, Ultraviolet Spa Disinfection Is Considered The Best Available Technology For Spa And Hot Tub Disinfection. Installation Is Quick And Easy, And Is A Great Way To Save On Maintenance Chemicals In The Long Run! Weight: 6.00 lb TECHNICAL CHARACTERISTICS Complete UV disinfection system PP-I Natural and automatic purification system. Include ballast, chamber, quartz and UV bulb You can use this kit if you don't have an UV disinfection system on your spa. You have to make a By pass on your circulation system and connect the PP-I system on it. The electric connection is AMP plug Illustration connexion ampoule Chamber dimensions : Lenght without ballast : 345mm Lenght with ballast : 420mm Diameter : 64mm Fitting thread in diameter : 33mm Union in 1" not include in this kit Average lifetime for the bulb : 9000 hours (1 or 2 years) Average lifetime for the quartz sleeve : 9000 hours (2 or 3 years) schema-ballast-complet.jpg PP-I system : PP-L Uv Parts Breakdown - Purchase Links complete LIT16000380 Complete Uv Light Pp-I System Purchase link item 4 LIT16000381 Uv Light Pp-I System Lamp 15 W 9000 Hours (T515) - wonder light gph303t5l 15w replacement Purchase link item 6 LIT16000383 Uv Light Pp-I System Quartz Glass Housing Thimble Purchase link item 5 LIT16000384 Uv Light Pp-I System O-Ring Seal (D24.5) Purchase link item 9 LIT16000382 Uv Light Pp-I System Transformer 10-16With 100-240V/50-60Hz . includes connector Purchase link item 8 LIT16000385 Uv Light Pp-I System Clip (Set Of 2) Purchase link COMPATIBLE WITH Hot Tub spa's that use PP-1 Uv systems UV OZONE GENERATOR - WONDER PP SERIES : PP-I USED IN WELLIS SPAS , CAL SPAS and many other Makes and models

Complete - Parts - Uv Light Pp-I System 100-240V/50-60Hz Uv Water Sterilizer, 3/4" Npt

crystal clear -
SKU:
ACM0888
|
UPC:
18120013A0336
$410.25
(No reviews yet)
Width:
10.00 (in)
Height:
8.00 (in)
Depth:
20.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

 Uv Light Pp-I System 100-240V/50-60Hz Uv Water Sterilizer, 3/4" Npt

  Complete system and Replacement Parts For Hot tubs such as Cal spas , Wellis Spas and others





Model Flow rate (l/min) Quartz Inlet/Outlet Bulb Ballast
PP-I 22.6 Diameter 24.5mm / Lenght : 350mm 1" T515 UV-3-regular
220-240V
PP-II 45.2 Diameter 24.5mm / Lenght : 680mm 1" T529 UV-6
PP-III 90.4 Diameter 24.5mm / Lenght : 910mm 1.5" T540 UV-6

The Complete Uv Light Sanitation System Is A Great Upgrade For Any Spa Owner! Our Uv Sanitation System Uses A 100% Contained Lamp That Uses A Physical Uv Light To Clean Waterborne Bacteria, Algae, Pathogens, And Virus. The Light Is Highly Concentrated Into Its Housing Element To Accommodate For High Flow Rate Cleaning.

This Process Is 100% Physical And Involves No Chemicals Making It Safe For Everyone. Currently, Ultraviolet Spa Disinfection Is Considered The Best Available Technology For Spa And Hot Tub Disinfection. Installation Is Quick And Easy, And Is A Great Way To Save On Maintenance Chemicals In The Long Run!
Weight: 6.00 lb





TECHNICAL CHARACTERISTICS

Complete UV disinfection system PP-I


Natural and automatic purification system.
Include ballast, chamber, quartz and UV bulb

You can use this kit if you don't have an UV disinfection system on your spa. You have to make a By pass on your circulation system and connect the PP-I system on it.

The electric connection is AMP plug

Illustration connexion ampoule
Chamber dimensions :
  • Lenght without ballast : 345mm
  • Lenght with ballast : 420mm
  • Diameter : 64mm
  • Fitting thread in diameter : 33mm

Union in 1" not include in this kit

Average lifetime for the bulb : 9000 hours (1 or 2 years)
Average lifetime for the quartz sleeve : 9000 hours (2 or 3 years)

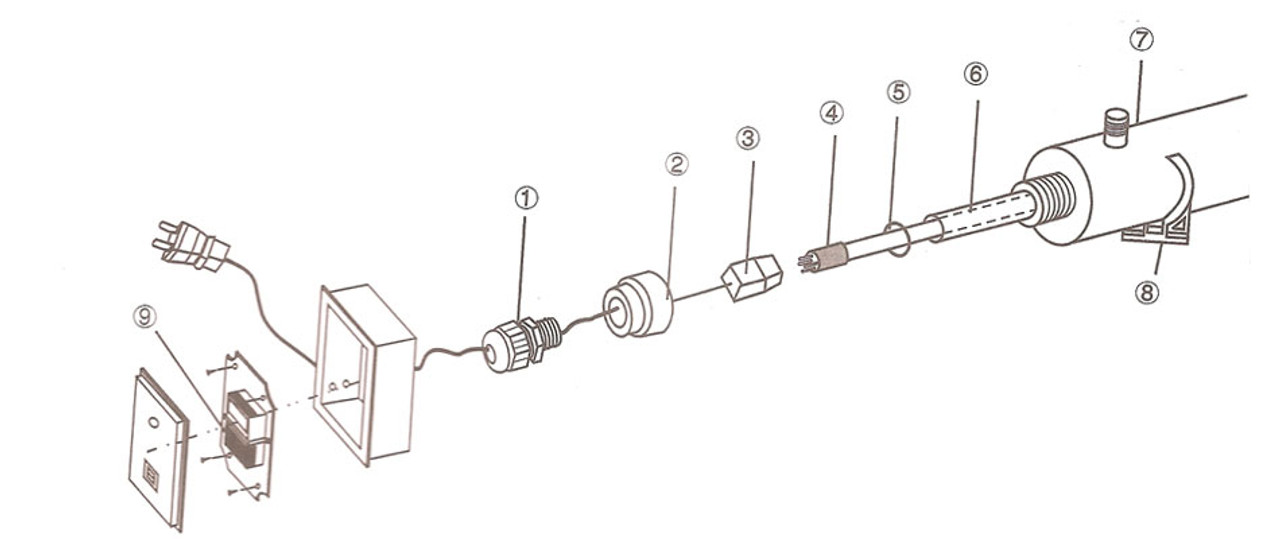

PP-I system :PP-L  Uv Parts Breakdown - Purchase Links



   --    LIT16000380         Complete Uv Light Pp-I System also replaces ACM0888 Purchase link
    4     LIT16000381 Uv Light Pp-I System Lamp 15 W 9000 Hours (T515) - wonder light  gph303t5l 15w replacement Purchase link
    6    LIT16000383 Uv Light Pp-I System Quartz Glass Housing Thimble Purchase link
    5    LIT16000384 Uv Light Pp-I System O-Ring Seal  (D24.5) Purchase link
   9  LIT16000382  Uv Light Pp-I System Transformer 10-16With 100-240V/50-60Hz . includes connector  Purchase link
    8   LIT16000385  Uv Light Pp-I System Clip (Set Of 2) Purchase link







COMPATIBLE WITH  Hot Tub spa's that use PP-1 Uv systems

UV OZONE GENERATOR - WONDER
PP SERIES : PP-I

USED IN WELLIS SPAS ACM0888, CAL SPAS  LIT16000380 and many other Makes and models
Warranty
manufacturer warranty
