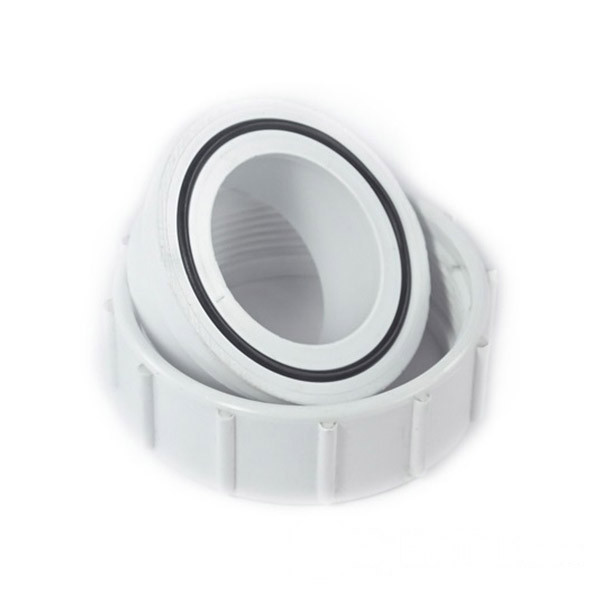

![2-1/2" Pump Union Kit — Union Nut, S Tailpiece & O-Ring for Hot Tubs and Spas
Got a leaking pump union? Don't drain your hot tub budget on a service call. This complete 2-1/2" pump union kit gives you everything you need to stop the leak and get your spa back up and running — fast.
Shop and order at Western Tub and Pool
Call us: 1-855-248-0777 | Email: fixmytub@gmail.com
[Shop Our Online Catalogue]
What's Included in This Kit
This kit contains all three components needed for a complete pump union replacement or repair on most standard hot tub and spa installations:
2-1/2" Union Nut — Buttress thread design for a secure, leak-resistant connection
2-1/2" S (Slip) Tailpiece — Fits directly into the pump port for a clean, watertight fit
O-Ring / Gasket — Provides the compression seal between the tailpiece and union nut
No hunting down three separate parts. Everything arrives together, ready to install.
Product Specifications
Specification
Detail
Union Nut Thread Type
2-1/2" Female Buttress Thread (FBT)
Tailpiece Connection Type
2-1/2" Slip (S)
Tailpiece Dimensions
Approx. 3.5" L x 3.5" W x 1.25" D
Material
Durable PVC / ABS plastic
O-Ring Outer Diameter
Approx. 3-7/16" OD
Application
Pump union (jet pump plumbing)
Common Manufacturer
Waterway Plastics
Common Alternate Part Numbers: 415-6000 (union nut), 417-5970 (tailpiece), V40-421S (O-ring), WW4175970, 9175-10A, 610881
Note: This kit is designed for pump unions. If you need a union for a heater connection, a different tailpiece profile may be required. Not sure? Call us — we'll help you confirm the right part.
Compatible Hot Tub Brands and Models
This 2-1/2" pump union configuration is widely used across many popular hot tub and spa brands. Compatible models commonly include those manufactured by or controlled with systems from:
Brands:
Waterway
Balboa Water Group
HydroQuip / Water Pro
Jacuzzi
Sundance Spas
Caldera Spas
Marquis Spas
Master Spas
Cal Spas
Coleman / Maax Spas
Dimension One Spas
Artesian Spas
Dynasty Spas
Vita Spas
Compatible pump types commonly include:
Waterway Hi-Flo, Executive, and EX2 Series
Aqua Flo FMHP and XP2 Series
BWG Vico Dura-Jet and Ultimax Series
LX 48 and 56 Series Pumps
Not sure if this part fits your spa? Check your existing part number, or send us your spa's make, model, and serial number and we'll confirm compatibility for you.
Why This Is a Hard-to-Find Part — and Why We Stock It
Pump unions take a beating. Constant pressure cycles, chemical exposure, and UV degradation cause union nuts to crack and O-rings to harden and fail over time. When that happens, water finds a way out — and a small leak can become a big problem quickly.
The challenge? This part isn't always sitting on the shelf at your local hardware store. It requires the right thread profile (buttress thread, not standard pipe thread), the right slip size, and a matching O-ring. Getting just one of these wrong means the repair won't hold.
At Western Tub and Pool, we stock the parts that are genuinely hard to find — so you don't have to wait weeks or cobble together mismatched components.
How to Install Your New Pump Union
Step 1: Turn off power and drain the pump area
Switch off the spa at the breaker and allow pressure to release before touching any plumbing connections.
Step 2: Unscrew the old union nut
Turn the union nut counterclockwise to disconnect the pump from the plumbing line. If the nut is cracked or seized, a split-nut replacement tool may be required.
Step 3: Remove the old tailpiece and O-ring
Pull the tailpiece free from the pump port. Inspect and discard the old O-ring — never reuse a compressed or damaged O-ring.
Step 4: Install the new tailpiece and O-ring
Insert the new tailpiece into the pump port. Seat the new O-ring into its groove, applying a small amount of silicone lubricant for a better seal.
Step 5: Thread on the union nut and tighten
Hand-tighten the new union nut onto the buttress threads, then snug it with a strap wrench — do not over-torque. Restore power and check for leaks.
Need a hand? Western Tub and Pool offers free home tutorials on hot tub and spa maintenance. We're happy to walk you through the repair — call us at 1-855-248-0777.
Frequently Asked Questions
How do I know if this is the right union for my spa?
The best way to confirm is to check the part number printed or stamped on your existing union nut or tailpiece. Common numbers for this configuration include 415-6000 (nut) and 417-5970 (tailpiece). If your part number isn't visible, send us a photo along with your spa's make, model, and serial number and we'll identify it for you. Email fixmytub@gmail.com or call 1-855-248-0777.
Does this kit include the O-ring?
Yes. This listing includes the union nut, S tailpiece, and O-ring — all three components needed for a complete pump union assembly.
What is a buttress thread, and does it matter?
Yes, it matters. Buttress thread is a specialized thread profile used on spa pump unions — it is not interchangeable with standard NPT (pipe thread) fittings. Using the wrong thread type will result in cross-threading or a failed seal. This kit uses the correct 2-1/2" female buttress thread (FBT) profile.
My union nut is cracked and difficult to access. Can it still be replaced?
If your existing nut is cracked but still attached, a split-nut design may allow you to replace it without cutting the plumbing. We carry those as well — ask us about the right option for your situation.
Can I use this part on a heater union?
No. This tailpiece is designed for pump union connections and uses a small flange suited to pump ports. Heater unions use a different tailpiece profile. If you need a heater union, contact us and we'll point you to the correct part.
Do you offer help identifying parts I can't find elsewhere?
Absolutely. Hard-to-find parts are our specialty. Send us a photo of the part, your spa's serial number, or any part numbers you can find, and our team will track down what you need. Email fixmytub@gmail.com or browse our online catalogue.
Can't Find Your Part?
If you're not sure what you're looking for — or if you've already searched everywhere else — Western Tub and Pool can help. We specialize in hard-to-find hot tub and spa parts and carry a wide range of replacement components for most major brands.
Here's how to reach us:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Online: Browse our full parts catalogue
Send us your part number (if known), photos of the part, or your hot tub's make, model, and serial number — and we'll take it from there.
[Shop and Order at Western Tub and Pool]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/1280x1280/products/4201/6242/SPA-WW400-5990__79687.1773441000.jpg?c=2 "2-1/2\" Pump Union Kit — Union Nut, S Tailpiece & O-Ring for Hot Tubs and Spas
