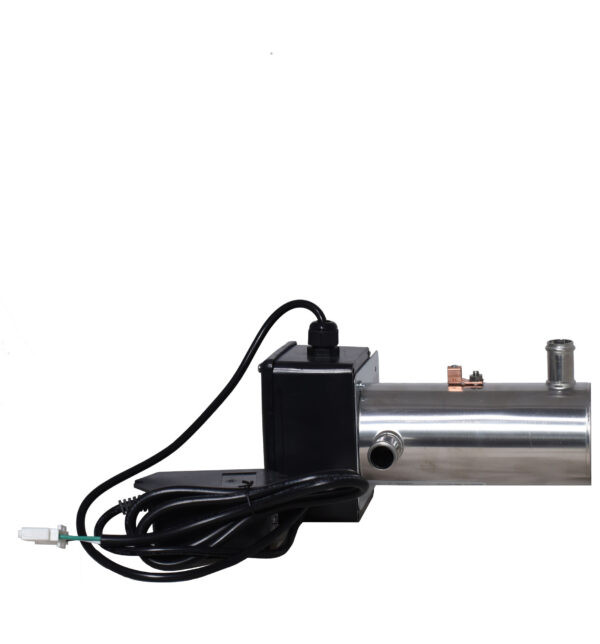

![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/1280x1280/products/4207/6249/BI59061__43273.1773526635.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")
![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/1280x1280/products/4207/6250/SPA_BI59061-01-600x600__71342.1773526654.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")

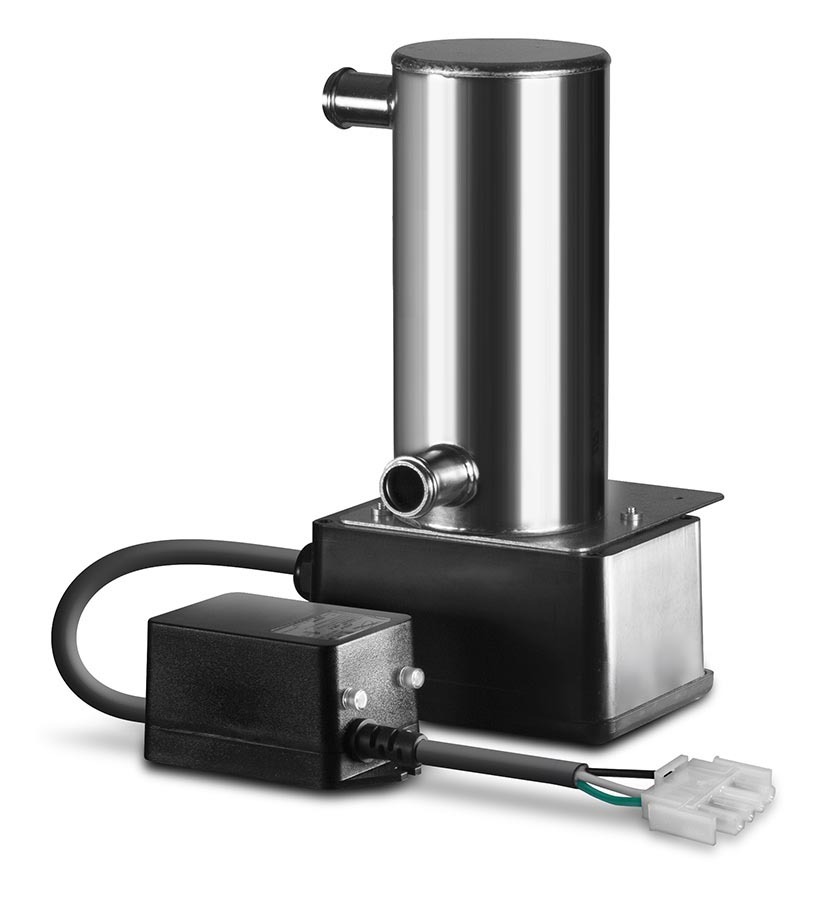

![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/1280x1280/products/4207/6251/SPA_BI59061-02-600x644__82298.1773526664.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")
![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/100x100/products/4207/6249/BI59061__43273.1773526635.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")
![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/100x100/products/4207/6250/SPA_BI59061-01-600x600__71342.1773526654.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")
![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/100x100/products/4207/6251/SPA_BI59061-02-600x644__82298.1773526664.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")
Product Description
Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
|
Specification |
Model 59060 (120V) |
Model 59061 (230V) |
|---|---|---|
|
Part Number |
59060 / 34-59060-01 |
59061-01 |
|
System Voltage |
120V |
230V / 240V |
|
Lamp Wattage |
7W |
7W |
|
Rated Amperage |
0.33A |
0.2A |
|
System Frequency |
50/60 Hz |
50/60 Hz |
|
Flow Rate |
6 GPM (max) |
6 GPM (max) |
|
Max Inlet Pressure |
20 PSI |
20 PSI |
|
Connection Size |
3/4" Barb |
3/4" Barb |
|
Unit Length |
9-3/8" |
9-3/8" |
|
Housing Material |
316L Stainless Steel |
316L Stainless Steel |
|
Lamp Life |
12,000 hours (standard) |
12,000 hours (standard) |
|
Approvals |
UL / CUL / TUV |
UL / CUL / TUV |
|
Application |
Spas / Hot Tubs |
Spas / Hot Tubs |
|
Includes |
AMP Cord, Built-in Mounting Bracket |
AMP Cord, Built-in Mounting Bracket |
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
- Phone: 1-855-248-0777
- Email:fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
- Cal Spas
- Bullfrog Spas
- Artesian Spas
- PDC Spas
- Sundance Spas (select models)
- Dynasty Spas
- ThermoSpas
- Strong Spas
- Master Spas (select models)
- Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
- Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
- Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
- Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
- Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
- Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
- Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us:fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]
![Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4" Barb
3/4" Barb
Unit Length
9-3/8"
9-3/8"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/500x659/products/4207/6249/BI59061__43273.1773526635.jpg?c=2 "Balboa Wavetec254 UV Sanitation System — Clean Water, Fewer Chemicals
Tired of battling cloudy water, skin irritation, and the harsh smell of over-chemicalized spa water? The Balboa Wavetec254 UV Sanitation System destroys 99% of harmful viruses, bacteria, and pathogens — without adding a single chemical to your water.
Shop and order at Western Tub and Pool. Call us at 1-855-248-0777 or email fixmytub@gmail.com
[Shop Now] [Call Us Today]
Why the Balboa Wavetec254 Belongs in Your Hot Tub
The Wavetec254 uses proven UV-C light technology to neutralize harmful microorganisms at the DNA level — including E. coli, Cryptosporidium, and many others — before they ever reach your skin. No harsh gases. No chemical byproducts. Just clean, safe, comfortable water every time you soak.
Destroys 99% of Bacteria, Viruses & Pathogens
UV-C light deactivates the DNA of harmful microorganisms on contact, delivering hospital-grade sanitation without the chemical load that irritates your eyes and skin.
Reduce Your Chemical Usage
By handling the heavy lifting of sanitation, the Wavetec254 significantly reduces the amount of chlorine or bromine your spa requires — saving you money on chemicals and protecting your equipment from corrosion.
Won't Damage Your Spa Equipment
Unlike ozone and salt systems, UV light sanitation does not degrade seals, pumps, heaters, or other spa components. Your investment is protected.
Built for the Hot Tub Environment
Constructed with 316L stainless steel and a special heat-treated housing, this unit is engineered specifically to withstand the heat, humidity, and pressure of a working hot tub. No melting. No degrading.
Low Power, Long Life
At just 7 watts and with a UV lamp rated for a standard 12,000 hours of service, the Wavetec254 is one of the most energy-efficient sanitation systems on the market. The UL-listed electronic ballast keeps power consumption minimal.
Compact and Easy to Mount
The built-in mounting bracket means no extra stands or clamps are needed. The small footprint fits easily within the spa cabinet underskirt, making installation straightforward for qualified technicians.
Product Specifications
Specification
Model 59060 (120V)
Model 59061 (230V)
Part Number
59060 / 34-59060-01
59061-01
System Voltage
120V
230V / 240V
Lamp Wattage
7W
7W
Rated Amperage
0.33A
0.2A
System Frequency
50/60 Hz
50/60 Hz
Flow Rate
6 GPM (max)
6 GPM (max)
Max Inlet Pressure
20 PSI
20 PSI
Connection Size
3/4\" Barb
3/4\" Barb
Unit Length
9-3/8\"
9-3/8\"
Housing Material
316L Stainless Steel
316L Stainless Steel
Lamp Life
12,000 hours (standard)
12,000 hours (standard)
Approvals
UL / CUL / TUV
UL / CUL / TUV
Application
Spas / Hot Tubs
Spas / Hot Tubs
Includes
AMP Cord, Built-in Mounting Bracket
AMP Cord, Built-in Mounting Bracket
Installation Note: The unit connects to the dedicated UV/Ozone mating connector on the spa controller's circuit board. A splitter (PN: 22934 — not included) may be required if a separate ozone system is also in use.
Compatible Controls & Hot Tub Models
The Balboa Wavetec254 is designed to connect directly to Balboa Water Group control systems via the dedicated UV/Ozone port. Compatible systems include a wide range of Balboa-controlled spa packs.
Not sure if it fits your spa? Our team at Western Tub and Pool can help you confirm compatibility before you order.
Check our online catalogue, or call or email us directly:
Phone: 1-855-248-0777
Email: fixmytub@gmail.com
Balboa control systems are found in hot tubs and spas manufactured by many leading brands, including:
Cal Spas
Bullfrog Spas
Artesian Spas
PDC Spas
Sundance Spas (select models)
Dynasty Spas
ThermoSpas
Strong Spas
Master Spas (select models)
Many private-label and custom spa brands
Not on this list? A large number of mid-range and custom spa brands use Balboa control packs. If your spa has a Balboa controller, it very likely supports the Wavetec254. Send us your make, model, and serial number and we'll confirm fit for you.
Maintenance at a Glance
Keeping your Wavetec254 running at peak performance is simple:
Every 6 months: Clean the quartz tube using a dry cloth or household lime remover. Rinse thoroughly before reinstalling.
Every 12 months: Replace the UV-C lamp (PN available through your spa manufacturer's certified dealer).
Status indicators: A solid green light on the ballast confirms the unit is receiving power. A solid red light confirms the UV-C lamp is actively running.
Important: UV-C lamp replacement and quartz tube maintenance should only be performed with the spa breaker turned to the OFF position. Never look directly at an operating UV-C lamp — UV-C radiation can cause serious eye and skin damage.
Frequently Asked Questions
What is the difference between model 59060 and 59061?
The only difference is voltage. The 59060 operates at 120V and is intended for North American spas wired at 120V. The 59061 operates at 230V/240V for spas on a higher-voltage circuit. Both deliver identical sanitation performance, flow ratings, and lamp life.
How does UV-C sanitation compare to ozone or salt systems?
UV-C light neutralizes pathogens on contact without generating any chemical byproducts. Unlike ozone, it does not produce gases that can damage gaskets, seals, or other spa components. Unlike salt systems, it does not corrode metal parts or increase total dissolved solids in your water.
How often does the UV lamp need to be replaced?
The UV-C lamp has a standard service life of 12,000 hours. Under typical hot tub usage, plan to replace the lamp once per year. Only use replacement lamps recommended by your spa manufacturer and supplied through an authorized distributor.
Can I install the Wavetec254 myself?
This unit is designed to be installed by spa manufacturers or qualified service technicians. It must be mounted completely underskirt of the spa, secured to the frame structure, and connected to the spa controller's dedicated UV/Ozone port. If you need help with installation or aren't sure whether your spa is compatible, contact Western Tub and Pool before purchasing.
What if I can't find my part number?
No problem. Send us a photo of the existing unit (if you have one), along with your hot tub's make, model, and serial number, to fixmytub@gmail.com. Our team will identify the correct part and confirm it's right for your spa before you order.
Is the Wavetec254 safe for use with existing chemicals?
Yes. The system is designed to work alongside your existing water chemistry routine. Because UV-C handles a significant portion of the sanitation load, you can typically reduce your chemical usage — but you should still maintain proper pH, alkalinity, and sanitizer levels as recommended by your spa manufacturer.
Can't Find Your Part? We Can Help.
Finding the right replacement part for your hot tub can be frustrating — especially when you're not sure of the part number or whether a component is compatible with your specific model.
At Western Tub and Pool, we specialize in hard-to-find spa parts and provide free, personalized assistance to get your hot tub back up and running as quickly as possible.
Here's how to get help:
Check your part number if you know it, and match it against the models listed above (59060 for 120V, 59061 for 230V / 59061-01).
Send us a photo of the part you need to replace, along with your spa's make, model, and serial number.
Email us at fixmytub@gmail.com — our team will confirm the correct part and walk you through your options.
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance to help you keep your water clear, safe, and properly balanced year-round.
Shop and Order at Western Tub and Pool
Whether you know exactly what you need or you're starting from scratch, our team is ready to help.
Call us: 1-855-248-0777
Email us: fixmytub@gmail.com
[Shop the Balboa Wavetec254 Now]")
![Relax More. Worry Less. The Automated Spa Monitor.
Stop guessing with messy test kits. The Balboa Purezone™ Hover (Part #96000) floats freely in your spa, automatically monitoring water health so you can focus on relaxing.
[Shop the Purezone Hover at Western Tub and Pool ]
Smart water care made simple
Maintaining your hot tub shouldn't feel like a chemistry experiment. The Balboa Purezone Water Monitoring System with Hover replaces manual testing with advanced optical technology, delivering precision and peace of mind.
Forget messy test kits
Say goodbye to color-matching strips and liquid reagents. Purezone automates the process, checking your water daily or every other day without you lifting a finger.
Precision optical readings
Using advanced optical sensors, Purezone measures key water parameters including pH, free chlorine, total alkalinity, and temperature. This ensures your water is safe, clean, and comfortable for every soak.
Real-time alerts & expert advice
Connected via the Purezone app (iOS and Android), the system sends alerts directly to your phone. It doesn’t just tell you the levels; it provides personalized chemical dosing recommendations tailored to your specific spa size and sanitizer type.
Floats freely with no installation
Unlike wall-mounted monitors that require drilling, the Purezone Hover (96000) simply floats in your water. It’s the perfect "drop-and-go" solution for existing hot tubs.
How it works
1. Connect the App
Download the Purezone app, create your profile, and input your spa details (size and sanitizer type) for customized advice.
2. Float and Monitor
Place the charged Purezone Hover unit into your spa water. It uses a replaceable P3 cassette to perform automated tests.
3. Get Results
Receive instant updates on your phone. If your water needs attention, the app tells you exactly what to add to balance it.
Is my hot tub compatible?
The Balboa Purezone Hover is a floating system designed to work with most residential spas and swim spas up to 2,400 gallons (9,084 Liters).
Because it floats independently and operates on a rechargeable battery, it does not require a specific Balboa control pack to function as a monitor. It is an excellent addition for owners of major spa brands, including:
Cal Spas
Marquis Spas
Master Spas
Artesian Spas
Jacuzzi
Sundance
dynasty spa
maax spa
...and many others.
Note: If you are looking for the wall-mounted version, please check for the "Dock" model (Part #97000). The Hover (Part #96000) is designed specifically for floating use.
Not sure if this is the right part?
Check your current equipment part number or consult our online catalog.
Kit Includes:
1 Purezone (Battery Pack and Cassette Housing)
1 P3 Cassette (FC, pH, and TA) inside foil storage bag
1 Battery Charger
1 Hover
1 Tie
1 Hardware Kit
Specifications
Brand:
Balboa Water Group
Measures:
10" x 9" x 11.5"
Features:
With Hover - Floats freely in spa.
Frequently asked questions
What exactly does the Purezone monitor measure?
The system tests for pH, Free Chlorine, Total Alkalinity, and Temperature. Note: Total Bromine measurement capabilities are coming soon.
How long do the cartridges last?
The replaceable P3 Cassette contains 48 tests. Depending on your testing frequency (daily or every other day), one cassette lasts up to 60 days in the water.
Does this connect to my spa's control pack?
The Hover model functions independently as a water monitor. However, for specific repair parts or integration questions regarding Balboa Spa Paks and lower controls, please contact our support team to ensure you get the exact part for your setup.
I can't find the part I need. Can you help?
Absolutely. We specialize in hard-to-find hot tub repair parts. If you are unsure if this is the correct unit, or need to identify a different part:
Check your part number on the existing unit.
Take clear photos of the part and your spa's lower control pack.
Email us at fixmytub@gmail.com or call 1-855-248-0777.
Upgrade your spa experience today
Save time, save chemicals, and ensure your water is always ready for a soak with the Balboa Purezone Hover.
[Get Purezone Now at Western Tub and Pool ]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/500x659/products/4068/5987/balboa_purzone_9700_sytem_at_western_tub_and_pool_e___84809.1770183469.png?c=2 "Relax More. Worry Less. The Automated Spa Monitor.
Stop guessing with messy test kits. The Balboa Purezone™ Hover (Part #96000) floats freely in your spa, automatically monitoring water health so you can focus on relaxing.
[Shop the Purezone Hover at Western Tub and Pool ]
Smart water care made simple
Maintaining your hot tub shouldn't feel like a chemistry experiment. The Balboa Purezone Water Monitoring System with Hover replaces manual testing with advanced optical technology, delivering precision and peace of mind.
Forget messy test kits
Say goodbye to color-matching strips and liquid reagents. Purezone automates the process, checking your water daily or every other day without you lifting a finger.
Precision optical readings
Using advanced optical sensors, Purezone measures key water parameters including pH, free chlorine, total alkalinity, and temperature. This ensures your water is safe, clean, and comfortable for every soak.
Real-time alerts & expert advice
Connected via the Purezone app (iOS and Android), the system sends alerts directly to your phone. It doesn’t just tell you the levels; it provides personalized chemical dosing recommendations tailored to your specific spa size and sanitizer type.
Floats freely with no installation
Unlike wall-mounted monitors that require drilling, the Purezone Hover (96000) simply floats in your water. It’s the perfect \"drop-and-go\" solution for existing hot tubs.
How it works
1. Connect the App
Download the Purezone app, create your profile, and input your spa details (size and sanitizer type) for customized advice.
2. Float and Monitor
Place the charged Purezone Hover unit into your spa water. It uses a replaceable P3 cassette to perform automated tests.
3. Get Results
Receive instant updates on your phone. If your water needs attention, the app tells you exactly what to add to balance it.
Is my hot tub compatible?
The Balboa Purezone Hover is a floating system designed to work with most residential spas and swim spas up to 2,400 gallons (9,084 Liters).
Because it floats independently and operates on a rechargeable battery, it does not require a specific Balboa control pack to function as a monitor. It is an excellent addition for owners of major spa brands, including:
Cal Spas
Marquis Spas
Master Spas
Artesian Spas
Jacuzzi
Sundance
dynasty spa
maax spa
...and many others.
Note: If you are looking for the wall-mounted version, please check for the \"Dock\" model (Part #97000). The Hover (Part #96000) is designed specifically for floating use.
Not sure if this is the right part?
Check your current equipment part number or consult our online catalog.
Kit Includes:
1 Purezone (Battery Pack and Cassette Housing)
1 P3 Cassette (FC, pH, and TA) inside foil storage bag
1 Battery Charger
1 Hover
1 Tie
1 Hardware Kit
Specifications
Brand:
Balboa Water Group
Measures:
10\" x 9\" x 11.5\"
Features:
With Hover - Floats freely in spa.
Frequently asked questions
What exactly does the Purezone monitor measure?
The system tests for pH, Free Chlorine, Total Alkalinity, and Temperature. Note: Total Bromine measurement capabilities are coming soon.
How long do the cartridges last?
The replaceable P3 Cassette contains 48 tests. Depending on your testing frequency (daily or every other day), one cassette lasts up to 60 days in the water.
Does this connect to my spa's control pack?
The Hover model functions independently as a water monitor. However, for specific repair parts or integration questions regarding Balboa Spa Paks and lower controls, please contact our support team to ensure you get the exact part for your setup.
I can't find the part I need. Can you help?
Absolutely. We specialize in hard-to-find hot tub repair parts. If you are unsure if this is the correct unit, or need to identify a different part:
Check your part number on the existing unit.
Take clear photos of the part and your spa's lower control pack.
Email us at fixmytub@gmail.com or call 1-855-248-0777.
Upgrade your spa experience today
Save time, save chemicals, and ensure your water is always ready for a soak with the Balboa Purezone Hover.
[Get Purezone Now at Western Tub and Pool ]")
