Product Description

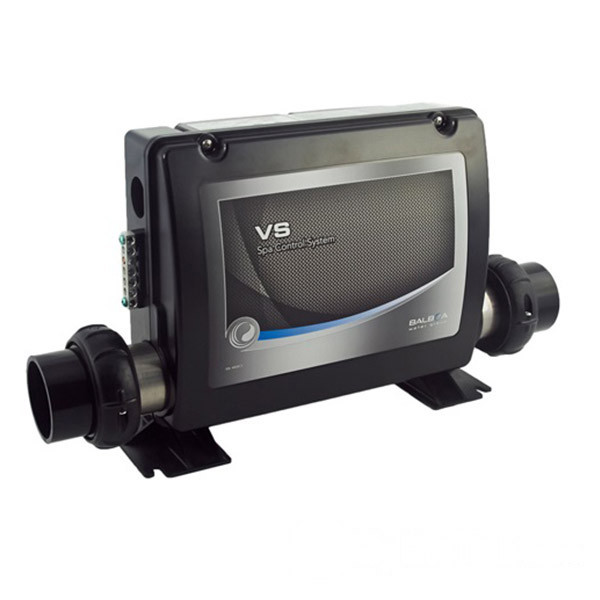

Balboa VS300 Spa Control System — Genuine Replacement Spa Pack
Your hot tub deserves more than a quick fix. The Balboa VS300 Spa Control System is a proven, reliable replacement spa pack trusted by hot tub owners and technicians across North America. Whether your current control system has failed or you're upgrading an older unit, the VS300 delivers dependable performance backed by Balboa's industry-leading engineering.
Shop and order at Western Tub and Pool.
Call us at 1-855-248-0777 or email fixmytub@gmail.com
What's Included
The Balboa VS300 Spa Control System ships as a complete unit, ready for installation:
- Control box with enclosure case
- Circuit board (PCB VS500Z)
- 4.0 kW heater (rated at 240V)
- Compatible VL-series topside control panel (model dependent — see compatible panels below)
Key Specifications
Electrical Requirements
- Voltage: 120/240 VAC, 60 Hz
- Amperage: 16A (120V) / 32A (240V)
- Circuit Breaker Rating: 20A max (120V) / 40A max (240V)
- GFCI: Class A GFCI-protected service required
- Wiring: 3-wire (hot, neutral, ground) for 120V / 4-wire (hot, hot, neutral, ground) for 240V
System Outputs (Standard Configuration)
- Pump 1: 2-speed (120V or 240V depending on configuration)
- Heater: 4.0 kW @ 240V (approximately 1.0 kW when running at 120V)
- Ozone: 120V or 240V (must match Pump 1 voltage; runs with Pump 1 on low speed)
- Spa Light: 12V
- AV/Stereo: 120V AV connector
Note: No second pump or blower output is available on the VS300. It is a single-pump system.
Dimensions & Weight
|
|
|
|---|---|
|
Control Box Dimensions |
17" L × 4.75" W × 10.5" H |
|
Shipping Dimensions |
20" × 11" × 6" |
|
Shipping Weight |
Approx. 10 lbs |
Compatible Topside Control Panels
The VS300 supports the following Balboa VL-series topside panels:
Standard (Base) Panels — DIP Switch A3 must be OFF:
- VL401 (LCD Lite Duplex) — PN 54665
- VL403 (LED Lite Duplex) — PN 54664
- VL406U — PN 55350
Optional Panels — DIP Switch A3 must be ON:
- VL200 (Mini) — PN 55123
- VL240 (MVP240) — PN 55080
- VL260 (MVP260) — PN 55081
Not sure which panel you need? Browse our online catalogue, or call us at 1-855-248-0777 and we'll help you find the right match.
Hot Tub Brands & Models That Use the Balboa VS300
The VS300 is a factory-installed control system found in a wide range of hot tub brands and models, including:
- Strong Spas (multiple models)
- Evolution Spas (Costco Evolution series)
- Emerald Spa
- Great Lakes Spas
- QCA Spas
- FreeFlow Spas (Watkins)
- MAAX Spas (select models)
- Various other OEM spa brands using Balboa VS-series control systems
Not on this list? Many additional hot tub manufacturers use Balboa control systems under their own part numbers. If you know your part number, make, model, or serial number, contact us and we'll confirm compatibility before you order.
Frequently Asked Questions
How do I know if the VS300 is the right replacement for my spa?
The best way to confirm compatibility is to check the part number on your existing control box or circuit board. You can also send us your hot tub's make, model, and serial number and our team will verify the correct replacement for you. Email a photo of your current system to fixmytub@gmail.com and we'll get back to you promptly.
Does this system come with a topside control panel?
Some VS300 configurations include a panel; others are sold as the pack only. The specific topside included (or required) can vary by model number. Call us at 1-855-248-0777 or check our online catalogue to confirm what's included with your specific unit.
What's the difference between the VS300 variants (54626, 303030, 55506, etc.)?
Different part numbers reflect different factory configurations — including voltage setups, ozone connector type, and AV connector options. The core system is the same Balboa VS300 platform. If you're unsure which variant you need, send us your current part number or a photo of your existing pack and we'll identify the right one.
Can I run this system on 120V?
Yes, the VS300 supports both 120V and 240V operation. However, note that heater output at 120V is approximately 25% of the rated 4.0 kW (roughly 1.0 kW), which significantly reduces heating performance. 240V operation is strongly recommended for optimal heating.
My part is hard to find — can Western Tub and Pool help?
Absolutely. Hard-to-find parts are our specialty. Send us an email at fixmytub@gmail.com with your part number (if known), the make and model of your hot tub, serial number, and photos of the part or system. Our team will work to track down the right component for you.
What if I need help installing or setting up the VS300?
Western Tub and Pool offers free in-home tutorials covering hot tub maintenance and operation. We're also available by phone and email to walk you through the basics. Call 1-855-248-0777 to speak with our team directly.
Can't Find Your Part? We Can Help.
Hard-to-find spa parts are what we do. If you're not sure whether the Balboa VS300 is the right fit for your hot tub, don't guess — reach out before you order.
Here's what to send us:
- Your current part number (if known)
- Make and model of your hot tub
- Serial number
- Photos of your current control system
Email:fixmytub@gmail.com
Phone: 1-855-248-0777
Shop and order at Western Tub and Pool.
![Balboa VS513Z Spa Control System — 5.5kW Heater Included
Your hot tub's control system is its brain. When it fails, everything stops. The Balboa VS513Z is a trusted, high-performance spa control system that gets your hot tub running again—reliably and efficiently.
Whether you're a homeowner tracking down a hard-to-find part or a technician sourcing a replacement pack, Western Tub and Pool has you covered.
Shop and order at Western Tub and Pool.
[Browse Our Online Catalogue] | [Call Us: 1-855-248-0777] | [Email: fixmytub@gmail.com]
Why the Balboa VS513Z?
The VS513Z is one of Balboa Water Group's most widely used spa control systems—and for good reason. It's built to support a dual-pump setup, delivers consistent heat through a powerful 5.5kW heater, and is engineered for straightforward installation.
Powerful and Versatile
5.5kW heater rated at 240V (approximately 25% output when running at 120V)
Supports two pumps (2-speed Pump 1 + 1-speed Pump 2) plus an optional circ pump
Compatible with 120V blower, ozone, and 12V spa light
Stereo/AV output (120V AV) supported
Flexible Electrical Configuration
240VAC, 60Hz, 48A — requires a Class A GFCI-protected circuit (60A breaker max)
4-wire service: hot, hot, neutral, ground
All circuits convertible between 120V and 240V configurations
Smart Control Modes
Standard, Economy, and Sleep modes for flexible energy management
Freeze protection to safeguard your spa during cold weather
Persistent memory stores filter settings, set temperature, and heat mode—even without a battery
What's in the Box
VS513Z control box (M7® Technology equipped)
1.375/5.5kW remote Versi-Heat heater
Spaside control panel with overlay (VL400 base panel — PN 55129)
12V light assembly
Installation kit with detailed owner's manual and wiring diagram
UL Recognized (US and Canada)
2-year manufacturer's warranty
Technical Specifications
Specification
Detail
Model Number
VS513Z (System PN 55839-02)
Part Number
CS6238B-U-VH-F
Heater
5.5kW at 240V / 1.375kW at 120V (remote Versi-Heat)
Voltage
240VAC, 60Hz
Amperage
48A
Breaker Requirement
60A max, Class A GFCI protected
Pump 1
240V, 2-Speed
Pump 2
240V, 1-Speed
Blower
120V
Ozone
120V (or 240V — field configurable)
Circ Pump
120V (optional)
Spa Light
12V
Stereo/AV
120V
Base Panel
VL400 (PN 55129)
Software Version
v43
Weight
10 lbs
Dimensions
18 × 12 × 10 in
Warranty
2 Years
Compatible Topside Control Panels
The VS513Z is compatible with the following Balboa spaside control panels:
Panel Model
Balboa Part #
Overlay Part #
ML900
52144
11095
ML700
54094
10669
ML400
51676
10671
VL400
55129
11822
Note: The VL400 panel requires software v38 or higher and connects to main board terminals J1 or J2.
Hot Tubs and Spa Brands That Use the VS513Z
The Balboa VS513Z is a widely adopted control system used across many spa manufacturers. Models that commonly feature this system include hot tubs built by:
Strong Spas
PDC Spas
Artesian Spas
Sundance Spas (select models)
Cal Spas (select models)
Jacuzzi (select entry-level models)
Coleman Spas
Dynasty Spas
Dimension One Spas (select models)
American Whirlpool
Marquis Spas (select models)
Not sure if the VS513Z fits your hot tub? Check your part number, or send us a photo along with your spa's make, model, and serial number. Our team will help you confirm the right replacement. Email us at fixmytub@gmail.com or call 1-855-248-0777.
Frequently Asked Questions
How do I know if the VS513Z is the right replacement for my spa?
The best way to confirm compatibility is to check your existing control box's part number, typically printed on a label inside the enclosure. If you can't locate it, send us your spa's make, model, and serial number—or a photo of your current pack—and we'll help you identify the right part. Reach us at fixmytub@gmail.com.
What's the difference between the VS513Z and other VS-series systems?
The VS513Z is configured specifically for a 2-pump setup with an optional circ pump, a 2-speed Pump 1, and a 5.5kW remote heater. Other VS-series models (like the VS501SZ or VS520SZ) differ in pump configuration, amperage, and heater rating. If you're unsure which model you need, we're happy to help.
Can this system run on 120V?
The VS513Z is primarily a 240V system, but circuits are convertible to 120V. At 120V, the heater output drops to approximately 25% of its rated 5.5kW capacity (roughly 1.375kW). For most full-size hot tubs, 240V operation is strongly recommended.
Is installation included or is this a DIY part?
The VS513Z comes with a detailed owner's manual and wiring diagram to support installation. If you're not confident with electrical work, we recommend hiring a licensed electrician or spa technician. Western Tub and Pool also offers guidance — call us at 1-855-248-0777 and we'll walk you through what you need.
What warranty comes with the VS513Z?
The Balboa VS513Z includes a 2-year manufacturer's limited warranty. Contact us if you experience any issues and we'll help you navigate the warranty process.
Is this part hard to find?
It can be. The VS513Z is an older but widely used system, and sourcing it through the right supplier matters. Western Tub and Pool specializes in hard-to-find spa parts — if it's not in our current stock, we'll do our best to track it down for you.
Can't Find the Right Part?
We know how frustrating it is when your hot tub goes down and the part you need seems impossible to find. That's exactly what Western Tub and Pool is here for.
Here's how to get help:
Check your existing part number (found on the label inside your current control box)
Or send us a photo of your current pack along with your spa's make, model, and serial number
Email us at fixmytub@gmail.com — we'll confirm the right part and get you sorted
We also offer free in-home tutorials on hot tub, swim spa, and pool maintenance — so you can keep your water clear, safe, and inviting all year round.
Shop and Order at Western Tub and Pool
Ready to get your hot tub back up and running?
[Browse Our Online Catalogue] | [Call: 1-855-248-0777] | [Email: fixmytub@gmail.com]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/500x659/products/4211/6256/SPA-BIVS513__48637.1773700932.jpg?c=2 "Balboa VS513Z Spa Control System — 5.5kW Heater Included
