![Maax Coleman MXBP20 Control System Retrofit Kit T8 (110339)
Restore full power and precision control to your Maax or Coleman spa with the MXBP20 Retrofit Kit T8, a complete, genuine control system upgrade built for reliability. If your old spa pack is failing, discontinued, or simply outdated, this kit gives you a modern, factory-direct replacement without the hassle of tracking down obsolete parts one by one.
[Shop and order at Western Tub and Pool]

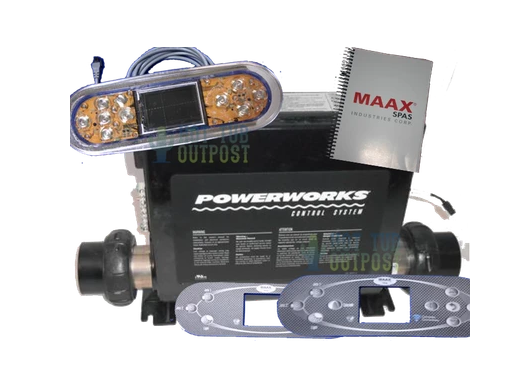

What's in the box
109320 MXBP20 800INC spa control pack with 5.5kW heater

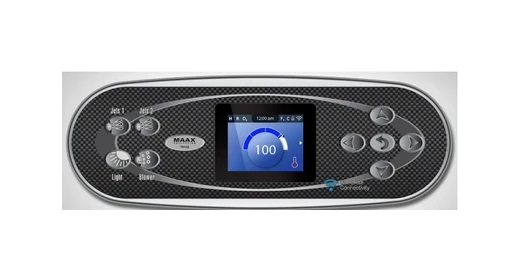

111515 9-button TP700 control panel (the modern replacement for the discontinued TP800)
Overlay (111517) matched to your button configuration
2 heater unions with gaskets for a clean, leak-free install
Support for up to 3 pumps, a blower, and a 24-hour circulation pump
BBA-ready circuit board, with the option to add WiFi via module 59303 (sold separately)
This is a genuine, original manufacturer kit — not an aftermarket substitute — so you get the fit, function, and durability your spa was designed for.
Why spa owners choose this kit
One retrofit, total compatibility. Whether your original system used a TP800 or an older control panel entirely, this kit bridges the gap with the current TP700 topside.
Built for heavy-duty use. With support for three pumps, a blower, and a dedicated circ pump, it's suited to spas with higher equipment demands.
Future-proofed. BBA capability means you can add WiFi control down the line without replacing the whole system again.
No guesswork. Free shipping and clear part cross-references take the confusion out of hot tub repair.
Compatible hot tub models
This retrofit kit (and its parts) is a factory-approved replacement for:
2003 Coleman Spas 600 Series
2001–2005 Coleman Spas 700 Series, including models 704, 705, and 706
Older Maax Spas and California Cooperage Spas using compatible obsolete control systems
Not sure if your spa falls outside this range? Coleman and Maax spas from the 100, 300, 400, and 500 Series may use related control systems — check your part number below or contact us to confirm.
Cross-reference & related part numbers
This kit replaces or upgrades the following discontinued or obsolete parts:
103742 – older Maax Coleman control system
101212 – Coleman Spas Topside Panel, 3 Pumps, 705, 706, 2003 Coleman 406
109244 – Maax Coleman spa control panel (discontinued; now replaced by TP700)
Related parts you may also need
110574 – Topside adapter bezel, for larger panel cutouts from your original control panel
59303 – Balboa WiFi module (add wireless spa control)
101279 – 2-speed pump cord, 115/230V, 120", with AMP connector
110719 – MXBP20 replacement circuit board (sold separately, if only the board is needed)
110239 – Nearly identical kit for spas without a dedicated 24-hour circ pump (uses main pump 1 for circulation instead)
Specifications
Detail
Info
Part / SKU
110339
Control pack
MXBP20 800INC
Heater
5.5kW
Control panel
TP700, 9-button
Pump support
Up to 3 pumps
Additional support
Blower, 24-hour circ pump
Connectivity
BBA-ready; WiFi optional (module 59303)
Shipping
Free shipping included
Exact dimensions and shipping weight vary slightly by warehouse region — contact us for precise figures ahead of installation planning.
Frequently asked questions
Is this a genuine manufacturer part?
Yes. The MXBP20 Retrofit Kit T8 is a genuine, original replacement kit, not a generic aftermarket clone.
My spa originally came with a TP800 panel. Will this kit still fit?
Yes. The TP800 has been discontinued and replaced industry-wide by the TP700. This kit includes the TP700 with a matching overlay, and a bezel (110574) is available separately if your original panel cutout is larger than the new one requires.
How many pumps and accessories can this system run?
Up to three pumps, a blower, and a dedicated 24-hour circulation pump. If your spa doesn't have a separate circ pump and instead relies on pump 1 for circulation, kit 110239 may be the better fit.
Can I add WiFi control to this system?
Yes. The control pack is BBA-ready, so you can add the optional 59303 WiFi module now or later.
What if I can't find my exact part number?
Send us a photo of your existing control pack, panel, or spa data plate, along with your spa's make, model, and serial number, and we'll confirm the correct match.
Hard-to-find part? We'll track it down.
Some spa parts are tough to source, especially on older or discontinued models. If you can't find what you need in our catalog, send us an email at fixmytub@gmail.com and our team will help identify and locate it for you.
A note for international customers: As an international e-retailer, Western Tub and Pool stocks parts across multiple regional warehouses. To reflect origin and manage shipping accurately, we use the following suffixes on applicable part numbers:
U – USA
C – Canada
E – Europe
A – Asia
Some parts may be available from more than one region under a different suffix. If you know your part number, check it against these suffixes before ordering. If you're unsure, send us pictures along with your hot tub's make, model, and serial number, and we'll match you to the correct part every time.
Ready to get your spa back up and running?
Skip the guesswork and get a genuine, fully compatible control system built to last.
[Shop and order at Western Tub and Pool]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/1280x1280/products/4546/6824/MAAX_retrofit__82545.1789149385.PNG?c=2 "Maax Coleman MXBP20 Control System Retrofit Kit T8 (110339)
