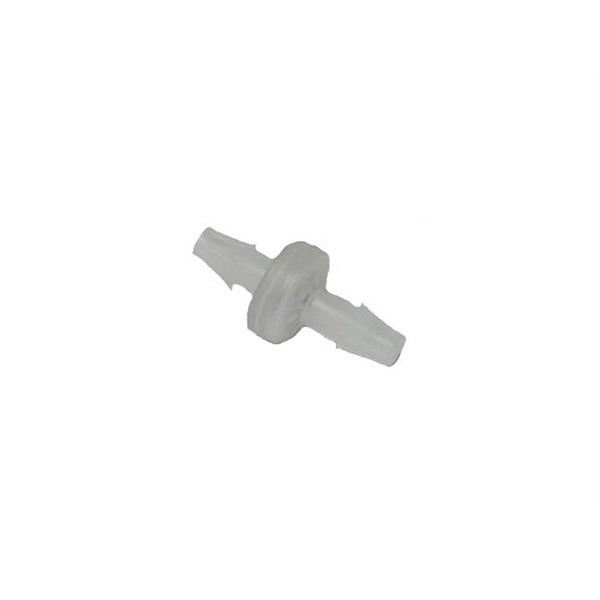

![Hot Tub Ozonator Check Valve — Replacement Spa Part
Keep your ozone system running the way it should. The ozonator check valve is a small but critical component that prevents water from flowing back into your ozonator unit — protecting it from damage and keeping your spa water clean and sanitized.
If your ozonator has stopped working, or you've noticed water backing up into the ozone line, a worn or failed check valve is often the culprit. The good news? It's one of the easier repairs you can make.
Shop and order at Western Tub and Pool.
[Call us at 1-855-248-0777] [Email: fixmytub@gmail.com]
What Is an Ozonator Check Valve?
An ozonator check valve is a one-way flow valve installed in the ozone supply line between your ozonator unit and the spa's plumbing. It allows ozone gas to flow into the water, while preventing water from travelling back up the tubing and into the ozonator — which can cause serious and costly damage to the unit.
Over time, check valves degrade due to constant exposure to ozone, heat, and water chemistry. Replacing a faulty check valve is one of the most common hot tub ozone system repairs.
Product Specifications
Connection Type: Barbed hose fittings
Common Sizes Available: 1/4" barb x 1/4" barb | 1/4" HB x 3/8" HB
Inlet/Outlet: Typically 3/8" barb
Weight: Approximately 0.10 lbs
Material: Ozone-resistant construction (Viton seal options available)
Kit Options: Available as a standalone valve or as part of a kit including up to 10 feet of ozone-rated tubing
Common Part Numbers: 9-0770-01, X278200, DIM01510-224 (confirm your part number before ordering — see below)
Not sure which size you need? Check your existing tubing diameter or the ozonator manufacturer's specifications. When in doubt, call us — we're happy to help you identify the right part.
Compatible Ozonator Brands & Hot Tub Models
This ozonator check valve is compatible with a wide range of hot tub brands and ozone systems. Compatibility depends on your specific ozonator unit and tubing size.
Compatible Ozonator Systems (Common)
Del Ozone (all models, including APG/CMP types)
Aquanova Ozonators
AquaSun Ozonators
Clearwater Ozonators
HydroQuip / Water Pro+ Ozonator systems
CMP (Custom Molded Products) ozonators
Hot Tub & Spa Brands Commonly Using Ozonator Check Valves
Artesian Spas
Beachcomber Hot Tubs
Cal Spas
Caldera Spas
Coast Spas
Coleman Spas
Dimension One Spas
Dynasty Spas
Hot Spring Spas (select models)
Jacuzzi Hot Tubs
LA Spas
Marquis Spas
Master Spas
PDC Spas
Saratoga Spas
Sundance Spas
Vita Spas
Waterway-equipped spas
And many more
Important: Check valve sizing varies by model and ozonator brand. Always verify your tubing diameter (1/4" or 3/8") and the connection type before ordering. If you're unsure, send us your hot tub's make, model, serial number, or a photo of the existing part — and we'll match it for you.
Why Replace Your Ozonator Check Valve?
A failing check valve can cause more than just ozone system issues. Here's what to watch for:
Water backing up into the ozonator — the most common sign of a failed valve
Ozonator unit making unusual sounds or failing prematurely
Reduced or no ozone output, leading to poor water sanitization
Visible cracking, discoloration, or deformation of the existing valve body
Ozone tubing that feels soft, brittle, or is leaking
Replacing the check valve promptly protects your ozonator and ensures your water stays clean with minimal chemical use.
How It Works — Easy Installation
Step 1: Turn off your spa
Switch off power at the breaker before accessing any internal components.
Step 2: Locate the ozone check valve
The check valve sits in the ozone supply line, typically between the ozonator unit and the injection point in your spa's plumbing.
Step 3: Remove the old valve
Loosen the hose clamps or pull free the barbed connections and remove the old check valve. Note the direction of the arrow on the valve body — this indicates flow direction.
Step 4: Install the new valve
Insert the new check valve with the arrow pointing toward the spa (away from the ozonator). Secure the tubing connections and replace any clamps.
Step 5: Restore power and test
Turn the spa back on and confirm the ozonator is functioning normally. Check for any leaks at the connection points.
Need help? Western Tub and Pool offers free home tutorials and support. Call us at 1-855-248-0777 and one of our spa repair specialists will walk you through the process.
Frequently Asked Questions
How do I know if my ozonator check valve needs replacing?
The most obvious sign is water inside the ozonator unit, which happens when the check valve fails and allows water to flow backward through the ozone line. You may also notice reduced water quality or an ozonator that no longer functions. Visible cracking or discoloration of the valve body is another clear indicator.
What size check valve do I need?
The most common sizes for hot tub ozonators are 1/4" x 1/4" barb and 1/4" x 3/8" barb. Check your current tubing diameter or ozonator manual to confirm the right fit. If you're unsure, send us a photo, your spa's make and model, and your serial number — we'll identify the correct part for you.
Can I use any check valve, or does it need to be ozone-rated?
It must be ozone-rated. Standard PVC check valves will degrade quickly when exposed to ozone gas. Look for valves with Viton seals or materials specifically rated for ozone compatibility.
Do you carry replacement kits that include tubing?
Yes. In addition to standalone check valves, we carry kits that include the valve plus ozone-rated tubing (typically up to 10 feet), making it easy to replace the entire ozone supply line in one go.
I can't find my part number — can you still help?
Absolutely. This is a hard-to-find part for many spa owners. Send us an email at fixmytub@gmail.com with a photo of the existing valve, your spa's make, model, and serial number, and we'll track down the right replacement for you.
How long does shipping take?
We ship quickly to get your spa back up and running as soon as possible. Contact us for current availability and shipping options for your location.
Can't Find Your Part? We Can Help.
Ozonator check valves can be tricky to identify — especially on older or discontinued spa models. At Western Tub and Pool, we specialize in hard-to-find hot tub and spa parts. If you know your part number, great. If not, we'll figure it out together.
Here's what to have ready when you contact us:
Your spa's make and model
Your spa's serial number
Your ozonator brand (if known)
Your tubing diameter (1/4" or 3/8")
A photo of the existing valve, if possible
Shop and order at Western Tub and Pool.
[Call us: 1-855-248-0777] [Email: fixmytub@gmail.com] [Browse our online catalogue]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/1280x1280/products/4208/6253/SPA_BI21626__27999.1773527436.jpg?c=2 "Hot Tub Ozonator Check Valve — Replacement Spa Part
