Product Description

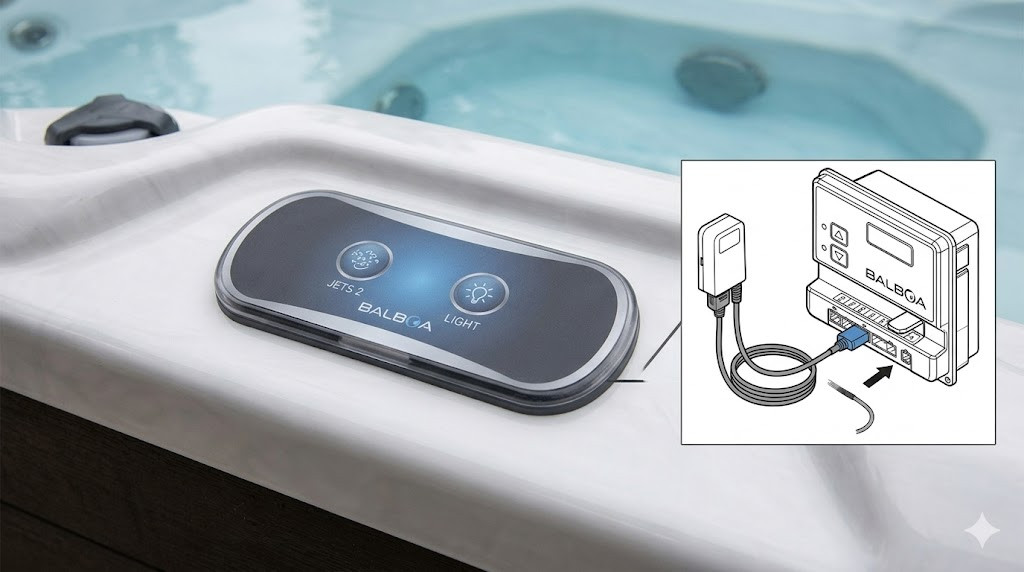

Restore Your Spa with the Balboa AX101 Panel
Get your hot tub running perfectly again with the Balboa AX101 2-Button Remote Topside. Designed to operate Pump 2 seamlessly on Balboa EL systems, this reliable replacement part ensures you have full control over your spa experience.
[Shop and order at Western Tub and Pool]
Precision Control for Your Hot Tub
Finding the right replacement parts for your hot tub or swim spa can be challenging, but Western Tub and Pool is here to help. The AX101 Button Panel (also known as the AX10 A2) is an auxiliary topside control designed specifically to operate Pump 2 on your system.
Key Features and Specifications
We have compiled all the essential details to ensure this part is the perfect fit for your spa setup:
- Function: Auxiliary 2-button remote topside to operate Pump 2 (or Jets 2)
- Overlay: Sold separately (no overlay included)
- Connector Type: 6-Pin Molex style plug
- Cord Length: 18-foot (5m) cord for flexible installation
- Face Dimensions: 2.2 inches (56 mm) diameter
- Drill Hole Size: 1.22 inches (31 mm)
- Shipping Weight: 0.45 lbs
- Shipping Dimensions: 5 x 4 x 3 inches
- Alternative Part Numbers: 52804, 52764, X310111, G8912, 34-52683-K, ACM0670
Compatible Hot Tubs and Systems
The Balboa AX101 panel is highly versatile. Check here and our online catalogue or call us to confirm compatibility. This topside remote works with the following systems and spa brands:
Compatible Control Systems:
- Balboa EL Packs and 8000 Series
- Balboa GL Systems (GL2000, GL2001, GL8000M3, GL84P)
- Balboa BP Systems (BP6013G1, BP6013G2, BP6013G3, BP2100G1)
Compatible Spa Brands and Models:
- H2X Swim Spas (2012-2024): Trainer 12, 14, 15, 17, 18, 19, Trainer Deep series, Therapool Deep, Therapool SE, Challenger 18D Pro, and Challenger 19D.
- Master Spas Legend Series (2004-2013): LS 650, LS 700, LS 750, LS 800, LS 850, LSX 1000, LSX 1050, LS2X, and STS/FST variations.
- Michael Phelps Swim Spas & Hot Tubs: Signature, Signature S, Momentum 50, Force, Impact, MP LSX 700, 800, 850, and 900.
- Healthy Living Hot Tubs (2018): MP LSX 700, 800, and 900.
- Twilight Series Spas (2018): Signature and Force.
Frequently Asked Questions
Does this topside panel come with a graphical overlay?
No, the AX101 auxiliary panel is sold without an overlay. Overlays (such as the X509015) can be purchased separately depending on your specific hot tub configuration.
How do I know if this is the exact part I need?
If you are unsure, check your existing part number. You can also reach out to our hard-to-find part assistance team! Send us pictures of your current topside, along with the make, model, and serial number of your hot tub.
Do you offer advice on overall hot tub maintenance?
Yes! Water care for your hot tub, swim spa, or pool is crucial for your comfort and safety. Western Tub and Pool offers free tutorials at your home to discuss the intricacies of your spa, helping you keep your water crystal clear and inviting.
Hard to Find Part Assistance
Struggling to find the right replacement hot tub repair parts? We have you covered. Whether you need topsides, pumps, filters, or electrical components, our experts are ready to assist.
Send us an email at fixmytub@gmail.com with your hot tub's make, model, serial number, and pictures of the part you need. You can also call us directly at 1-855-248-0777 for immediate assistance.
[Shop and order at Western Tub and Pool]
![Restore Your Spa with the Balboa AX101 Panel
Get your hot tub running perfectly again with the Balboa AX101 2-Button Remote Topside. Designed to operate Pump 2 seamlessly on Balboa EL systems, this reliable replacement part ensures you have full control over your spa experience.
[Shop and order at Western Tub and Pool]
Precision Control for Your Hot Tub
Finding the right replacement parts for your hot tub or swim spa can be challenging, but Western Tub and Pool is here to help. The AX101 Button Panel (also known as the AX10 A2) is an auxiliary topside control designed specifically to operate Pump 2 on your system.
Key Features and Specifications
We have compiled all the essential details to ensure this part is the perfect fit for your spa setup:
Function: Auxiliary 2-button remote topside to operate Pump 2 (or Jets 2)
Overlay: Sold separately (no overlay included)
Connector Type: 6-Pin Molex style plug
Cord Length: 18-foot (5m) cord for flexible installation
Face Dimensions: 2.2 inches (56 mm) diameter
Drill Hole Size: 1.22 inches (31 mm)
Shipping Weight: 0.45 lbs
Shipping Dimensions: 5 x 4 x 3 inches
Alternative Part Numbers: 52804, 52764, X310111, G8912, 34-52683-K, ACM0670
Compatible Hot Tubs and Systems
The Balboa AX101 panel is highly versatile. Check here and our online catalogue or call us to confirm compatibility. This topside remote works with the following systems and spa brands:
Compatible Control Systems:
Balboa EL Packs and 8000 Series
Balboa GL Systems (GL2000, GL2001, GL8000M3, GL84P)
Balboa BP Systems (BP6013G1, BP6013G2, BP6013G3, BP2100G1)
Compatible Spa Brands and Models:
H2X Swim Spas (2012-2024): Trainer 12, 14, 15, 17, 18, 19, Trainer Deep series, Therapool Deep, Therapool SE, Challenger 18D Pro, and Challenger 19D.
Master Spas Legend Series (2004-2013): LS 650, LS 700, LS 750, LS 800, LS 850, LSX 1000, LSX 1050, LS2X, and STS/FST variations.
Michael Phelps Swim Spas & Hot Tubs: Signature, Signature S, Momentum 50, Force, Impact, MP LSX 700, 800, 850, and 900.
Healthy Living Hot Tubs (2018): MP LSX 700, 800, and 900.
Twilight Series Spas (2018): Signature and Force.
Frequently Asked Questions
Does this topside panel come with a graphical overlay?
No, the AX101 auxiliary panel is sold without an overlay. Overlays (such as the X509015) can be purchased separately depending on your specific hot tub configuration.
How do I know if this is the exact part I need?
If you are unsure, check your existing part number. You can also reach out to our hard-to-find part assistance team! Send us pictures of your current topside, along with the make, model, and serial number of your hot tub.
Do you offer advice on overall hot tub maintenance?
Yes! Water care for your hot tub, swim spa, or pool is crucial for your comfort and safety. Western Tub and Pool offers free tutorials at your home to discuss the intricacies of your spa, helping you keep your water crystal clear and inviting.
Hard to Find Part Assistance
Struggling to find the right replacement hot tub repair parts? We have you covered. Whether you need topsides, pumps, filters, or electrical components, our experts are ready to assist.
Send us an email at fixmytub@gmail.com with your hot tub's make, model, serial number, and pictures of the part you need. You can also call us directly at 1-855-248-0777 for immediate assistance.
[Shop and order at Western Tub and Pool]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/500x659/products/4227/6273/Remote_2_button__42173.1773785856.jpg?c=2 "Restore Your Spa with the Balboa AX101 Panel
Get your hot tub running perfectly again with the Balboa AX101 2-Button Remote Topside. Designed to operate Pump 2 seamlessly on Balboa EL systems, this reliable replacement part ensures you have full control over your spa experience.
[Shop and order at Western Tub and Pool]
Precision Control for Your Hot Tub
Finding the right replacement parts for your hot tub or swim spa can be challenging, but Western Tub and Pool is here to help. The AX101 Button Panel (also known as the AX10 A2) is an auxiliary topside control designed specifically to operate Pump 2 on your system.
Key Features and Specifications
We have compiled all the essential details to ensure this part is the perfect fit for your spa setup:
Function: Auxiliary 2-button remote topside to operate Pump 2 (or Jets 2)
Overlay: Sold separately (no overlay included)
Connector Type: 6-Pin Molex style plug
Cord Length: 18-foot (5m) cord for flexible installation
Face Dimensions: 2.2 inches (56 mm) diameter
Drill Hole Size: 1.22 inches (31 mm)
Shipping Weight: 0.45 lbs
Shipping Dimensions: 5 x 4 x 3 inches
Alternative Part Numbers: 52804, 52764, X310111, G8912, 34-52683-K, ACM0670
Compatible Hot Tubs and Systems
The Balboa AX101 panel is highly versatile. Check here and our online catalogue or call us to confirm compatibility. This topside remote works with the following systems and spa brands:
Compatible Control Systems:
Balboa EL Packs and 8000 Series
Balboa GL Systems (GL2000, GL2001, GL8000M3, GL84P)
Balboa BP Systems (BP6013G1, BP6013G2, BP6013G3, BP2100G1)
Compatible Spa Brands and Models:
H2X Swim Spas (2012-2024): Trainer 12, 14, 15, 17, 18, 19, Trainer Deep series, Therapool Deep, Therapool SE, Challenger 18D Pro, and Challenger 19D.
Master Spas Legend Series (2004-2013): LS 650, LS 700, LS 750, LS 800, LS 850, LSX 1000, LSX 1050, LS2X, and STS/FST variations.
Michael Phelps Swim Spas & Hot Tubs: Signature, Signature S, Momentum 50, Force, Impact, MP LSX 700, 800, 850, and 900.
Healthy Living Hot Tubs (2018): MP LSX 700, 800, and 900.
Twilight Series Spas (2018): Signature and Force.
Frequently Asked Questions
Does this topside panel come with a graphical overlay?
No, the AX101 auxiliary panel is sold without an overlay. Overlays (such as the X509015) can be purchased separately depending on your specific hot tub configuration.
How do I know if this is the exact part I need?
If you are unsure, check your existing part number. You can also reach out to our hard-to-find part assistance team! Send us pictures of your current topside, along with the make, model, and serial number of your hot tub.
Do you offer advice on overall hot tub maintenance?
Yes! Water care for your hot tub, swim spa, or pool is crucial for your comfort and safety. Western Tub and Pool offers free tutorials at your home to discuss the intricacies of your spa, helping you keep your water crystal clear and inviting.
Hard to Find Part Assistance
Struggling to find the right replacement hot tub repair parts? We have you covered. Whether you need topsides, pumps, filters, or electrical components, our experts are ready to assist.
Send us an email at fixmytub@gmail.com with your hot tub's make, model, serial number, and pictures of the part you need. You can also call us directly at 1-855-248-0777 for immediate assistance.
[Shop and order at Western Tub and Pool]")
![Find Your Balboa Topside Control
Get your hot tub running perfectly again with our Remote 3 Button replacement control. If you are struggling with a broken spa panel, we have the exact Balboa EL Pack parts you need to get back to relaxing in comfort.
[Shop and order at Western tub and pool]
Restore Your Spa Experience
Seamless Compatibility
Our Remote 3 Button topside control panels are designed specifically for Balboa EL Packs, ensuring a flawless connection and effortless operation for your hot tub.
Hard to Find Part Assistance
Struggling to track down the exact replacement part for an older spa? We specialize in sourcing rare and discontinued hot tub parts so you do not have to replace your entire system.
Expert Support on Standby
You are never alone in your repair journey. Call us for more information or assistance with these replacement hot tub repair parts and other spa parts at 1-855-248-0777.
Product Specifications & Compatibility
Check your part number if known, or browse our online catalogue to verify compatibility.
Dimensions and Weight:
Dimensions: 5.5 inches x 2.2 inches
Cable Length: 7 feet
Weight: 0.5 lbs
Compatible Hot Tubs and Models:
Balboa EL1000 and EL2000 Systems
Balboa EL8000 Mach 3 Packs
Compatible with various Coleman, Sundance, and Jacuzzi models utilizing Balboa 3-button remote configurations.
(Check our online catalogue or call us to confirm your specific make and model).
Need help identifying your part?
If you are unsure whether this Remote 3 Button control is the right fit, we are here to help. Send us an email to fixmytub@gmail.com and include:
Pictures of your current topside control and control pack
The make and model of your hot tub
Your hot tub's serial number
Your part number (if known)
Frequently Asked Questions
How do I know if this control works with my hot tub?
This specific remote is designed for Balboa EL Packs. To guarantee a match, check the part number on the back of your existing control panel or reach out to our team with your hot tub's make and model.
What if my hot tub part is discontinued?
We specialize in hard-to-find parts! Send us pictures and your serial number to fixmytub@gmail.com, and our experts will help you find a suitable replacement or retrofit option.
How can I get in touch for ordering assistance?
You can call us directly at 1-855-248-0777 or email us at fixmytub@gmail.com for prompt support with your replacement parts.
Get your hot tub ready for relaxation
[Shop and order at Western tub and pool]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/500x659/products/4229/6276/3__50537.1773788100.jpg?c=2 "Find Your Balboa Topside Control
Get your hot tub running perfectly again with our Remote 3 Button replacement control. If you are struggling with a broken spa panel, we have the exact Balboa EL Pack parts you need to get back to relaxing in comfort.
[Shop and order at Western tub and pool]
Restore Your Spa Experience
Seamless Compatibility
Our Remote 3 Button topside control panels are designed specifically for Balboa EL Packs, ensuring a flawless connection and effortless operation for your hot tub.
Hard to Find Part Assistance
Struggling to track down the exact replacement part for an older spa? We specialize in sourcing rare and discontinued hot tub parts so you do not have to replace your entire system.
Expert Support on Standby
You are never alone in your repair journey. Call us for more information or assistance with these replacement hot tub repair parts and other spa parts at 1-855-248-0777.
Product Specifications & Compatibility
Check your part number if known, or browse our online catalogue to verify compatibility.
Dimensions and Weight:
Dimensions: 5.5 inches x 2.2 inches
Cable Length: 7 feet
Weight: 0.5 lbs
Compatible Hot Tubs and Models:
Balboa EL1000 and EL2000 Systems
Balboa EL8000 Mach 3 Packs
Compatible with various Coleman, Sundance, and Jacuzzi models utilizing Balboa 3-button remote configurations.
(Check our online catalogue or call us to confirm your specific make and model).
Need help identifying your part?
If you are unsure whether this Remote 3 Button control is the right fit, we are here to help. Send us an email to fixmytub@gmail.com and include:
Pictures of your current topside control and control pack
The make and model of your hot tub
Your hot tub's serial number
Your part number (if known)
Frequently Asked Questions
How do I know if this control works with my hot tub?
This specific remote is designed for Balboa EL Packs. To guarantee a match, check the part number on the back of your existing control panel or reach out to our team with your hot tub's make and model.
What if my hot tub part is discontinued?
We specialize in hard-to-find parts! Send us pictures and your serial number to fixmytub@gmail.com, and our experts will help you find a suitable replacement or retrofit option.
How can I get in touch for ordering assistance?
You can call us directly at 1-855-248-0777 or email us at fixmytub@gmail.com for prompt support with your replacement parts.
Get your hot tub ready for relaxation
[Shop and order at Western tub and pool]")
![Connect Your Spa Controls Seamlessly
Easily connect remote buttons to your Balboa VS Packs with the genuine Balboa Modular Jack 22174 2:1 Splitter. Find the exact repair replacement hot tub spa part you need to keep your water circulating safely.
[Shop and order at Western Tub and Pool]
Why choose the Balboa 22174 Splitter?
When your hot tub's remote buttons stop responding, finding the right adapter is essential. The Balboa Modular Jack 22174 provides a reliable, secure connection designed specifically to extend your spaside control cables without losing signal quality.
Built for exact compatibility
This 8-pin RJ45 adapter features one male connector splitting into two female connectors, allowing you to effortlessly link multiple remote control components to your main spa pack.
Hard-to-find part assistance
Not sure if this is the right piece? We can help. Check your part number if known, or send us pictures, the make and model of the hot tub, and the serial number. Send us an email to fixmytub@gmail.com and our experts will track down exactly what you need.
Bonus water care support
New to hot tubs and pools or just looking for refresher tricks and tips to keep that water crystal clear and inviting? Water care for your hot tub, swim spa, or pool is crucial for your comfort and safety. Western Tub and Pool has free tutorials at your home to discuss the intricacies of your spa, hot tub, or pool.
Product Specifications
To make it easy for you to verify this is the replacement hot tub repair part you need, here are the detailed specifications and cross-reference numbers:
Dimensions and Weight
Shipping Dimensions: 1.2 × 1 × 1.5 inches
Shipping Weight: 0.02 - 0.05 lbs
Connector Type: 8-Pin RJ45 Phone Plug (1 Male to 2 Female)
Alternative Part Numbers
This genuine part is also recognized by the following manufacturer and catalog numbers:
9711-73
59-138-1402
305707
610777
10255
BB22173
Marquis Spa 600-6243
Compatible Hot Tubs and Control Models
The Balboa 22174 2:1 Splitter is a highly versatile modular jack used across several major control systems and hot tub brands.
Compatible Control Systems:
Balboa VS Packs
Balboa Serial Standard products
Balboa Serial Deluxe products
Known Compatible Hot Tub Models:
Marquis Spas (Commonly fits all models manufactured between 2000 and 2003)
Hot tubs universally equipped with 8-pin Balboa VS remote button systems
Because spa packs are highly customizable, compatible controls include many other unlisted models. Check here and our online catalogue or call to verify your exact model.
Frequently asked questions
How do I know if the Balboa 22174 splitter will fit my hot tub?
Check your part number if known, or send us pictures, the make, the model, and the serial number of your hot tub to fixmytub@gmail.com. We will verify the compatibility for you.
What is the primary function of this part?
This modular jack acts as a splitter for remote buttons, extending an 8-pin phone plug type spaside control cable so you can connect multiple topside or remote accessories to your Balboa VS Pack.
Do you sell other replacement parts or heating assemblies?
Yes! Western Tub and Pool sells a comprehensive range of repair replacement hot tub spa parts, including heating assemblies, pumps, and control boards. Call us for more information or assistance with these replacement hot tub repair parts and other spa parts.
Get your spa back in perfect working order
Shop and order at Western Tub and Pool today. Call us for more information or assistance at 1-855-248-0777.
[Contact us to order]](https://cdn11.bigcommerce.com/s-b7yzllubsu/images/stencil/500x659/products/4218/6263/SPA-BI22174JACK-2__22226.1773773381.jpg?c=2 "Connect Your Spa Controls Seamlessly
Easily connect remote buttons to your Balboa VS Packs with the genuine Balboa Modular Jack 22174 2:1 Splitter. Find the exact repair replacement hot tub spa part you need to keep your water circulating safely.
[Shop and order at Western Tub and Pool]
Why choose the Balboa 22174 Splitter?
When your hot tub's remote buttons stop responding, finding the right adapter is essential. The Balboa Modular Jack 22174 provides a reliable, secure connection designed specifically to extend your spaside control cables without losing signal quality.
Built for exact compatibility
This 8-pin RJ45 adapter features one male connector splitting into two female connectors, allowing you to effortlessly link multiple remote control components to your main spa pack.
Hard-to-find part assistance
Not sure if this is the right piece? We can help. Check your part number if known, or send us pictures, the make and model of the hot tub, and the serial number. Send us an email to fixmytub@gmail.com and our experts will track down exactly what you need.
Bonus water care support
New to hot tubs and pools or just looking for refresher tricks and tips to keep that water crystal clear and inviting? Water care for your hot tub, swim spa, or pool is crucial for your comfort and safety. Western Tub and Pool has free tutorials at your home to discuss the intricacies of your spa, hot tub, or pool.
Product Specifications
To make it easy for you to verify this is the replacement hot tub repair part you need, here are the detailed specifications and cross-reference numbers:
Dimensions and Weight
Shipping Dimensions: 1.2 × 1 × 1.5 inches
Shipping Weight: 0.02 - 0.05 lbs
Connector Type: 8-Pin RJ45 Phone Plug (1 Male to 2 Female)
Alternative Part Numbers
This genuine part is also recognized by the following manufacturer and catalog numbers:
9711-73
59-138-1402
305707
610777
10255
BB22173
Marquis Spa 600-6243
Compatible Hot Tubs and Control Models
The Balboa 22174 2:1 Splitter is a highly versatile modular jack used across several major control systems and hot tub brands.
Compatible Control Systems:
Balboa VS Packs
Balboa Serial Standard products
Balboa Serial Deluxe products
Known Compatible Hot Tub Models:
Marquis Spas (Commonly fits all models manufactured between 2000 and 2003)
Hot tubs universally equipped with 8-pin Balboa VS remote button systems
Because spa packs are highly customizable, compatible controls include many other unlisted models. Check here and our online catalogue or call to verify your exact model.
Frequently asked questions
How do I know if the Balboa 22174 splitter will fit my hot tub?
Check your part number if known, or send us pictures, the make, the model, and the serial number of your hot tub to fixmytub@gmail.com. We will verify the compatibility for you.
What is the primary function of this part?
This modular jack acts as a splitter for remote buttons, extending an 8-pin phone plug type spaside control cable so you can connect multiple topside or remote accessories to your Balboa VS Pack.
Do you sell other replacement parts or heating assemblies?
Yes! Western Tub and Pool sells a comprehensive range of repair replacement hot tub spa parts, including heating assemblies, pumps, and control boards. Call us for more information or assistance with these replacement hot tub repair parts and other spa parts.
Get your spa back in perfect working order
Shop and order at Western Tub and Pool today. Call us for more information or assistance at 1-855-248-0777.
[Contact us to order]")
