LX Pump Co.,Ltd. LX SPA Pool Pump 2 Speed , 48WUA1501C-II (1.5HP/120V/60Hz)

LX pumps
SKU:
48WUA1502C-II
|
UPC:
48WUA1501C-II
$396.66
(No reviews yet)
Width:
10.00 (in)
Height:
9.00 (in)
Depth:
18.00 (in)
Current Stock:
Adding to cart… The item has been added
Description



LX Pump Co.,Ltd. LX SPA Pool Pump 2 Speed ,48WUA1501C-II (1.5P/120V/60Hz)



Are you looking for a reliable pump to power up your hot tub? Look no further than the LX Pump Co., Ltd. LX SPA Pool Pump 2 Speed,

48WUA1501C-II(1.5HP/120V/60Hz).

It's the perfect choice for 110v plug-and-play hot tubs! With this pump, you can trust that it will deliver the performance you need. Plus, it's built with high-quality components to ensure a long and trouble-free operation. So go ahead and make the switch today - your hot tub will thank you!

  This pump is used in spa berry , Inova and other plug and play hot tubs

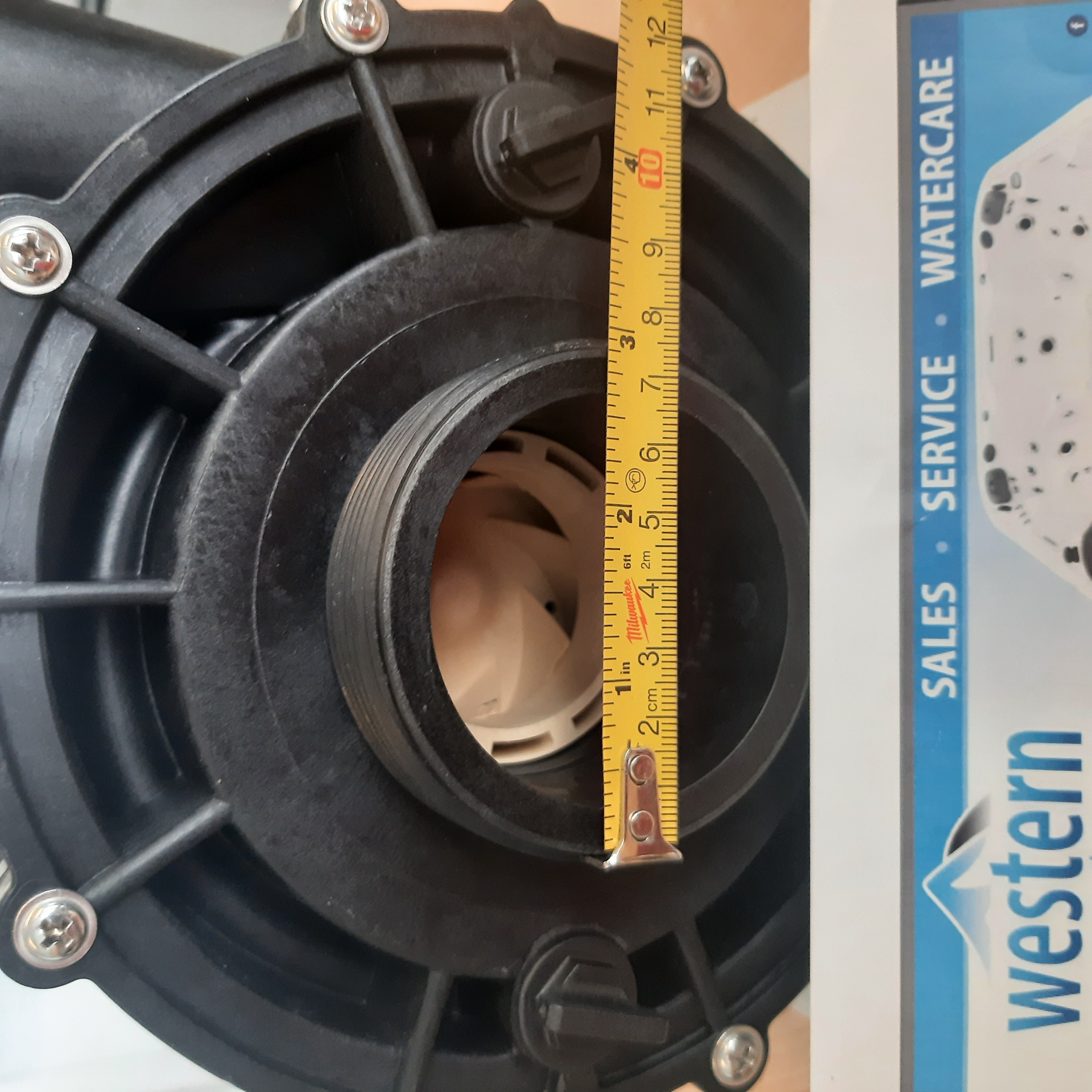

2 inch plumbing refers to inner diameter of the connecting hose, so the outer diameter across the pump threads is 3 1/16"



LX Pump 1.5 HP 2-Speed 115V 48 Frame 2 Inch Plumbing

Start Capacitor replacement   50uf 300v
Run Capacitor replacement    40uf 450v



-This pump is can be used in circ pump applications - 115 volt operation.

-Replaces 1.5 horsepower, 2-speed, 48 frame, 12 amp, 120 volt spa pumps.

-can be wired for single speed applications




intake and discharge are same measurement



 Specifications Lx pump

LX Pump Model 48WUA
Speed 2 Speed (2-Spd)
Motor Voltage 115v
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.5hp
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 13.8A/3.8A









Feature:
LX SPA Pump Two Speed, SPA Pool Pump: WUA series SPA Pool pump is 2 speed SPA pool pump designed for SPA pool usage in North American that can achieve to high-speed for massage and low speed for filter and cycle functions; 2" inlet and outlet for high-performance and low-noise perfected for SPA system and swimming pool; Pump housing could be 90 flexible installation for easy pipe work. Liquids part is made of high reinforce engineering plastic; Applied mechanical seal type ensure watertight in long-time continuous operation. WUA series is recognized and accepted products by SPA manufacturers.

Motor: Fan cooling motor and 56 frame are suitable for North American. High and low dual-speed motor is allowed to select. The design of motor winding is advanced. The exchange between high-speed and low- speed is sensitive that attained the advanced level in home pump industry; The material of frame is A3 armor plate; Dual-speed motor is under low-noise and less-vibration and durability that is specialized for SPA and swimming pool pump. Insulation class F, protection IPX5, continuous duty; Single-phase with thermal protector from T1 to ensure safety and convenience in operation.

Certification:
1. CCC Safety certificate
2. ETL/cETL in American/Safety certificate in Canada

Application
1. It's suitable for hydro massage tube or SPA system and circulation or filter of swimming pool system.
2. It's suitable for circulating water equipment that use for workshop's cooling-down. (Single-speed)

Instance
1. SPA pool: WUA200/ WUA250/ WUA300

Selection Notice:
1. The number of nozzle installed. ( suffix I is for single-speed motor and II for dual-speed motor. )
2. Applied region's voltage and frequency (220-240V/60Hz)
3. Applied region's request for safety certificate.
4. Request for fitting size(60.5mm, 63mm, 75 mm is available)
5. The length of supply cord and type of plug. (No plug, AMP is available).

LX SPA Pump 2 Speed (Two Speed/Dual Speed), SPA Pool Pump (WUA200-I/WUA300-I/WUA400-I/ WUA200-II/WUA300-II/WUA400-II)
LX Pool and Spa Pump 2 Speed (WUA200-II/WUA300-II/WUA400-II):
WUA200-I: (2.0HP/220V/60Hz),
WUA300-I: (3.0HP/220V/60Hz),
WUA400-I: (4.0HP/220V/60Hz),

WUA200-II:(2 Speed, 2.0HP/220V/60Hz),
WUA300-II:(2 Speed, 3.0HP/220V/60Hz),
WUA400-II:(2 Speed, 4.0HP/220V/60Hz).

Warranty
manufacture warranty
