1.5 BHP Spa Pump 2 Speed 2 Inch In/Out 56 Frame 120 Volts 60hz

Cal spa
SKU:
PUM15BHP-56F2S120V(MLH-2)
|
UPC:
PUM15BHP-56F2S120V
$349.29
(No reviews yet)
Width:
11.00 (in)
Height:
11.00 (in)
Depth:
20.00 (in)
Current Stock:
Adding to cart… The item has been added
Description





Get Turbine-Powered Performance from your Hot Tub with Replacement 1.5 BHP Spa Pump!

Are you looking for a way to upgrade the performance of your hot tub? Look no further than this replacement 1.5 BHP spa pump, capable of powering up any pool or hot tub with its two speed, 2 inch in/out, 56 frame, 120 Volts, and 60 HZ power. Used by many brands, this pump is a great choice for replacing pumps with the same characteristics.

This replacement 1.5 BHP spa pump is capable of providing your hot tub with exceptional performance that you won’t find with some other models—guaranteed! So don’t wait another moment to upgrade your hot tub, and get the turbine-powered performance you deserve.

Whether you’re looking for a new pump or just need to replace an existing one, this 1.5 BHP spa pump is perfect for you. Get it today and take advantage of its reliable power!



specifications

  • 1.5 BHP
  • 120 volt
  • 60 hz ( North America )
  • intake 2 inch
  • discharge 2 inch
  • 56 frame





PUMPS GENERAL INFORMATION



Hot Tub Pump 48 and 56 Frame Different?

There's a lot to consider when shopping for a hot tub pump – from size and shape, to frame types and voltage. But if you're just starting out in the hot tub world, all those choices can be overwhelming. So what makes a 48 frame hot tub pump different?

The main difference lies in the motor housing size. The 48 frame pump has a smaller motor housing, which means that the four through bolts that fasten the wet end to the motor are closer together than those on a 56 frame pump. Measuring between consecutive through bolts (not across diagonal) on a 48 frame hot tub yields a measurement of about 3 9/16 inches, while a 56 frame hot tub has through bolts that measure about 4 1/8 inches apart.

It's important to pay attention to the size and type of motor housing you're choosing for your hot tub pump – and not just because it affects the distance between through bolts! Different sized frames can accommodate different motors, which means that they'll also affect the power of your hot tub pump. Luckily, with a little research, you can find the perfect fit for your hot tub and relax in peace!

What's more, if you're looking to upgrade or replace an existing hot tub pump motor, it's important to keep all these details in mind. After all, the last thing you want is to purchase a pump that isn't compatible with your existing hot tub setup. So take the time to research the different frame sizes and their corresponding motors before you make a purchase! That way, you can be sure that your new hot tub pump will fit in perfectly. Our sales desk can assist you with your replacement at 1-855-248-0777



More information on pump intake and discharge sizing





Don't Make a Mistake with Your Hot Tub Pump!



Are you thinking of replacing the pump in your hot tub? Don't make a mistake and order the wrong size, or your plumber won't be too happy!



Most spa pumps use either 1.5” or 2” plumbing fittings to attach them to the hot tub plumbing system. Remember that these are pipe call-out sizes, not fitting measurements - so make sure you measure correctly!



No matter what the brand of the pump is, measuring your pipe's diameter will ensure that you're getting the right size to do the job properly. Don't risk ordering something too small or too large for your hot tub and ending up with a pump that doesn't work without replumbing!



Always refer to your hot tub manual before getting started, and double-check the measurements of your existing pump before ordering a replacement. That way, you can be sure you're getting the right size for your hot tub - no second guessing required!



If you're looking for help finding the right pump for your hot tub, don't hesitate to consult a professional or call our desk at 1-855-248-0777 With help, you can be confident that you're ordering the perfect fit and will have a working pump in no time!





MEASURING  PLUMBING SIZE:
Pump hot tub plumbing size is very important, but a lot of people get it wrong and end up ordering the wrong pump. Most spa pumps use either 1.5” or 2” plumbing fittings and a few have 2.5” intake suction. These are pipe call-out sizes, not fitting measurements.





Hot tubs, spas replacement parts for sale at QuickSpaParts.com



Plumbing Size   Pump Thread O.D. (approx.)
1.5"   2-3/8"
2.0"   3"
2.5"   3-5/8"

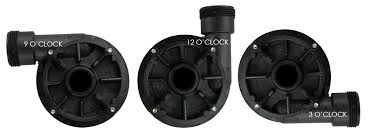

option to rotate pump wet end orientation with center intake and side discharge information



All pumps come in 12 o clock .you can rotate the wet end to new preferred location by  loosening

the bolts that hold the wet end and rotating the wet end to new  position.



Image result for wet end pump orientations



Air purge nipple

add air purge nipple on hot tubs with air purge assist build . they are installed on the wet end face plate of the pump for hot tubs that have the air line purge options installed . a pump may have one or two of these installed on the pump to assist air purging and reduce chance of an air lock on the pump.



purchase these by look up or click link air purge nipple





MODEL REPLACEMENT NUMBERS for ref on calspa models



PUM15BHP-56F2S120V replaces the following part numbers: PUM22000045, PUM22000032, PUM22000545, PUM22000531, PUM22000121, PUM22000455, PUM22000550, PUM22000045R, PUM22000533-SK, PUM22000534-SK, PUM22000535-SK, PUM22000536-SK, PUM22000551, PUM22000135, PUM22901088, PUM22000030, PUM22000510, PUM22000539, PUM22901107, PUM22901108, PUM22901109, PUM22250004, PUM22250005, PUM22000583, PUM22000132















Some brands of hot tub spa pumps (such as Hayward, Jacuzzi, and Sta-Rite) use non-standard fittings with different dimensions. Please contact us at 1-855-248-0777 Parts Help desk if you need assistance with these

Warranty
manufacture warranty
