Product Description
Waterway Pool and SPA pump 2 speed -2x2-56 frame-3.0HP-220V-60Hz (370821-1d)
Dive into superior water circulation with the robust Waterway Hot tub Pump, expertly designed to maintain your pool or spa with utmost efficiency. This high-performance pump features dual-speed functionality and an impressive power output suited to a wide range of water applications.
Key Features:
- High Horsepower: With a 3.0HP motor, experience powerful and consistent water flow.
- Dual Speed Control: Easily switch between high and low speed for optimal energy savings and performance.
- Voltage Compatibility: Operating at 220V-60Hz, it is ideal for residential or commercial use.
- Size & Fit: Designed with a standard 2x2-56 frame, it ensures seamless integration with your existing pool or spa system.
Product Benefits:
- Energy Efficiency: Two-speed operation allows for reduced energy consumption during lower demand times.
- Durability: Built with high-quality materials ensuring long-lasting performance in various weather conditions.
- Quiet Operation: Engineered to run quietly, minimizing noise pollution for a more tranquil environment.
- Enhanced Water Quality: Consistent water circulation helps to keep your pool or spa clean and clear.
Features:
- Executive wet end designed specifically for 56-frame motors
- Large 2 ½" intake for improved flow performance and reduced noise
- Large 6 ½" diameter wet end for higher head pressure
- Split capacitor, (start and run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90°
- Silicone carbide seals, Viton bellows, 316SS casing, corrosion resistance against chlorine, bromine & salt
- CE and TUV certification on export pumps to ensure product for you and your customers
- Executive wet end designed specifically for 56-frame motors
- Large 2 ½” intake for improved flow performance and reduced noise
- Large 6 ½” diameter wet end for higher head pressure
- Split capacitor, (start and run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90°
- Silicone carbide seals, Viton bellows, 316SS casing, corrosion resistance against chlorine, bromine & salt
- CE and TUV certification on export pumps


Customer Assistance:
Should you require further information, guidance on installation, or any assistance, our dedicated customer support team is at your service. Please reach out to us at:1-855-248-0777
Western Tub and Pool

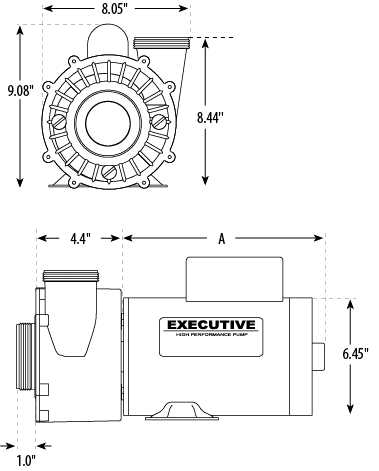

2-Speed Executive 56-Frame Pumps specifications
| Part No. | Description | HP | Volts | Amps High Speed | Amps Low Speed | Hz | Dimension "A" | Weight (lbs.) |
| 3720821-13 | 2 1⁄2" Intake - 2" Discharge | 2 | 230 | 8.0 | 3.0 | 60 | 8.875" | 34 |
| 3720821-1D | 2" Intake - 2" Discharge | 2 | 230 | 8.0 | 3.0 | 60 | 8.875" | 34 |
| 3721221-13 | 2 1⁄2" Intake - 2" Discharge | 3 | 230 | 10.0 | 3.4 | 60 | 9.875" | 37 |
| 3721221-1D | 2" Intake - 2" Discharge | 3 | 230 | 10.0 | 3.4 | 60 | 9.875" | 37 |
| 3721621-13 | 2 1⁄2" Intake - 2" Discharge | 4 | 230 | 12.0 | 4.4 | 60 | 10.375" | 44 |
| 3721621-1D | 2" Intake - 2" Discharge | 4 | 230 | 12.0 | 4.4 | 60 | 10.375" | 44 |
| 3722021-13 | 2 1⁄2" Intake - 2" Discharge | 5 | 230 | 16.4 | 4.8 | 60 | 10.375" | 46 |
| 3722021-1D | 2" Intake - 2" Discharge | 5 | 230 | 16.4 | 4.8 | 60 | 10.375" | 47 |
1-Speed Executive 56-Frame Pumps
( please note a 2 speed pump can be hooked up as single speed pump simply by connecting the high speed windings only )
| Part No. | Description | HP | Volts | Amps | Hz | Dimension "A" | Weight (lbs.) |
| 3710821-13 | 2 1⁄2" Intake - 2" Discharge | 2 | 230 | 8.0 | 60 | 8.875" | 34 |
| 3710821-1D | 2" Intake - 2" Discharge | 2 | 230 | 8.0 | 60 | 8.875" | 34 |
| 3711221-13 | 2 1⁄2" Intake - 2" Discharge | 3 | 230 | 10.0 | 60 | 9.875" | 34 |
| 3711221-1D | 2" Intake - 2" Discharge | 3 | 230 | 10.0 | 60 | 9.875" | 34 |
| 3711621-13 | 2 1⁄2" Intake - 2" Discharge | 4 | 230 | 12.0 | 60 | 10.375" | 40 |
| 3711621-1D | 2" Intake - 2" Discharge | 4 | 230 | 12.0 | 60 | 10.375" | 41 |
| 3712021-13 | 2 1⁄2" Intake - 2" Discharge | 5 | 230 | 16.4 | 60 | 10.375" | 45 |
| 3712021-1D | 2" Intake - 2" Discharge | 5 | 230 | 16.4 | 60 | 10.375" | 45 |
Contact Number: 1-855-248-0777 for this pump and others
Take the plunge with the Waterway Pool and SPA Pump, combining power, efficiency, and reliability for an unparalleled water experience.
